Model

Length

Specification

Compliance

PN 800

7 ft

Fully adjustable telescopic legs, adjustable height from 1.15m to 2.15m
Wheelbase (Footprint) : 1.5m Diameter
Weight : 12.15 kgs
Maximum Load Capacity : 500kg

EN 795:2012 TYPE B

PN 800

10 ft

Fully adjustable telescopic legs, adjustable height from 1.9m to 3.07m
Wheelbase (Footprint) : 1.7m Diameter
Weight : 16.8 kgs
Maximum Load Capacity : 500kg

Description

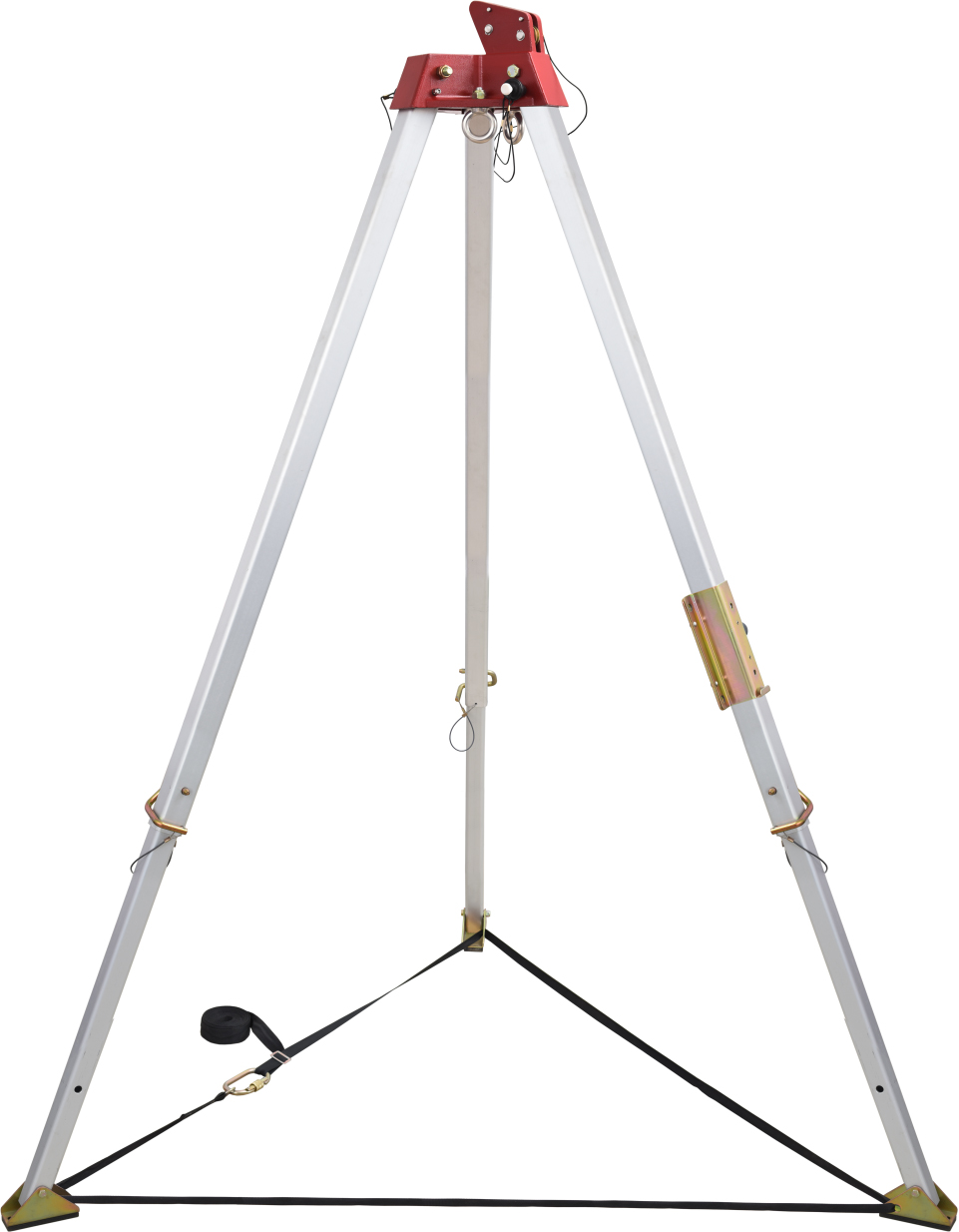

KARAM PN 800 Tripod

For access in confined spaces.
With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing a cable.
Having two auxiliary eye bolts as attachment points.
Aluminium alloy cast head, legs in Aluminium.
Steel support-shoes provided with rubber sole to increase friction and impart more stability.
Strength of anchorage point greater than 12 kN.
Every Tripod is provided with inbuilt fixture for attaching our winch PN 801, PN 817, PN 818, PN 818 SR, PN 801(40) (can be supplied without this fixture on special request).
PN 800 (7ft) can also be used with Retrieval Fall Arrester Blocks PCGS 10R, PCGS 20R & PCGS 30R with the help of their specialized mounting brackets respectively.
Every Tripod is provided with Tripod Bag Ref. PN 904(7ft)(BL)

KARAM PN 800 Tripod
