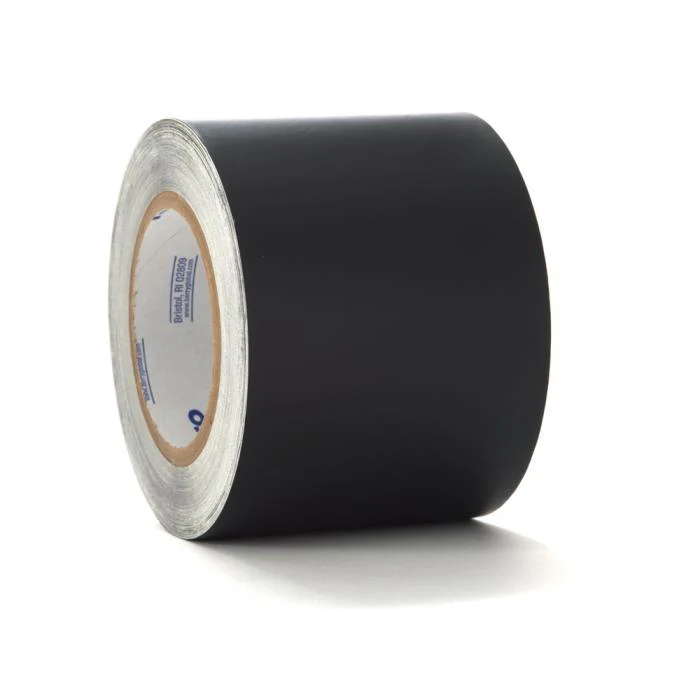

Patco 1800 – Flame Retardant Galley Tape
Patco 1800 – Flame Retardant Galley Tape (Moisture Barrier Tape)
Short Overview
Maisam Dubai supplies Patco® 1800 Flame Retardant Galley Tape, an aircraft-grade moisture barrier and corrosion inhibitor tape designed for wet cabin areas such as galleys, lavatories, and entryways. Also known as “Black Mylar Tape”, Patco 1800 provides exceptional conformability, moisture protection, and flame retardancy.
It forms a permanent bond with most aircraft sealants and surfaces, helping prevent corrosion on floor structures and maintaining long-term adhesion in high-moisture environments.
Available sizes: 18″, 24″, 2″, and 3″ x 100 ft rolls
📦 Core: 3″ Plastic
Key Features
-
Meets FAA FAR 25.853(a) – flame retardant and certified for aircraft interiors.
-
Moisture and corrosion resistant – ideal for galleys, lavatories, and entryways.
-
Compatible with most aircraft sealants – excellent adhesion and bonding.
-
Tough, conformable PVC backing – resists delamination, puncture, and abrasion.
-
Permanent adhesive bond – provides long-term protection.
-
Can be die-cut to various shapes for easy installation.
-
Meets major OEM standards: Bombardier, Fokker, and de Havilland.
Send Inquiry
0
People watching this product now!
Description
Patco® 1800 Galley Tape is a flame retardant, acrylic-adhesive, PVC moisture barrier tape designed to provide long-lasting corrosion protection for aircraft interior structures. Commonly referred to as “Black Mylar Tape” or “Galley Tape”, it’s applied to areas exposed to water and humidity—such as galleys, lavatories, and entryways—where moisture intrusion can cause damage to subfloor structures.
The conformable vinyl film backing allows Patco 1800 to adhere tightly around corners, rivets, and contours without delaminating, while the acrylic adhesive system ensures excellent compatibility with common aircraft sealants.
This tape provides durable sealing performance, abrasion resistance, and FAR 25.853(a) flame compliance, making it a trusted choice among aircraft OEMs and MRO operators worldwide.
Factory Certificates of Conformance (C of C) and Burn Test Certificates are available upon request.
Uses of the Product
-
Aircraft galley, lavatory, and entryway moisture protection.
-
Sealing floor joints and structures to prevent corrosion.
-
Aerospace insulation moisture barrier.
-
Protection against hydraulic fluid and cleaning solvent exposure.
-
Interior lining and edge sealing applications.
-
OEM and MRO cabin refurbishment.
Applications
-
Commercial & Regional Aircraft Manufacturing
-
Aircraft Interior Maintenance & Refurbishment
-
Aerospace Wet Zone Sealing
-
Corrosion Prevention for Floor Structures
-
Cabin Retrofit & Modification Projects
Technical Specifications
| Property | Value | Standard / Notes |
|---|---|---|
| Adhesive Type | Acrylic | – |
| Carrier / Backing | Polyvinyl Chloride (PVC) film | – |
| Release Liner | 53# coated Kraft paper | – |
| Color | Black | – |
| Thickness (Total) | 9.5 mils (Carrier + Adhesive) | ASTM D-1000 |
| Backing Thickness | 8.5 mils | – |
| Adhesion to Steel | 50 oz/in (5.47 N/cm) | PSTC-101 |
| Tensile Strength | 25 lb/in (43.8 N/cm) | ASTM D-1000 |
| Elongation | 200% | – |
| Puncture Resistance | 12 lb | ASTM D-1000 |
| Abrasion / Wear Index | 34 | ASTM D-4060 |
| Operating Temperature Range | -40°F to +200°F (-40°C to +93°C) | – |
| Application Temperature | 50°F to 120°F (10°C to 49°C) | – |
| Core Size | 3″ Plastic | – |
| Sizes Available | 18″, 24″, 2″, 3″ x 100 ft rolls | – |
| Certifications | FAR 25.853(a), Fokker FK05-159/160, Bombardier DSC 91-25 series | – |
| Country of Origin | USA | – |
Why Buy From Maisam Dubai
-
Authorized distributor of Patco aerospace-grade tapes.
-
All products FAR 25.853(a) certified for aircraft interior use.
-
Burn test and factory C of C documentation available.
-
Fast regional delivery across UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait.
-
Technical support for OEM and MRO compliance.
FAQs
Q1. What is Patco 1800 Galley Tape used for?
It’s used as a moisture barrier and corrosion protection tape in aircraft interiors (galleys, lavatories, and entryways).
Q2. Is it flame retardant?
Yes, it meets FAR 25.853(a) and is approved for interior aircraft use.
Q3. What materials is it compatible with?
It’s compatible with most aerospace sealants and composite materials.
Q4. What sizes are available?
Available in 18″, 24″, 2″, and 3″ x 100 ft rolls, core size 3″.
Q5. Does it resist moisture and abrasion?
Yes, it is designed for high moisture resistance and abrasion protection.
Q6. Do you supply across GCC?
Yes, Maisam Dubai supplies Patco tapes across UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait.
