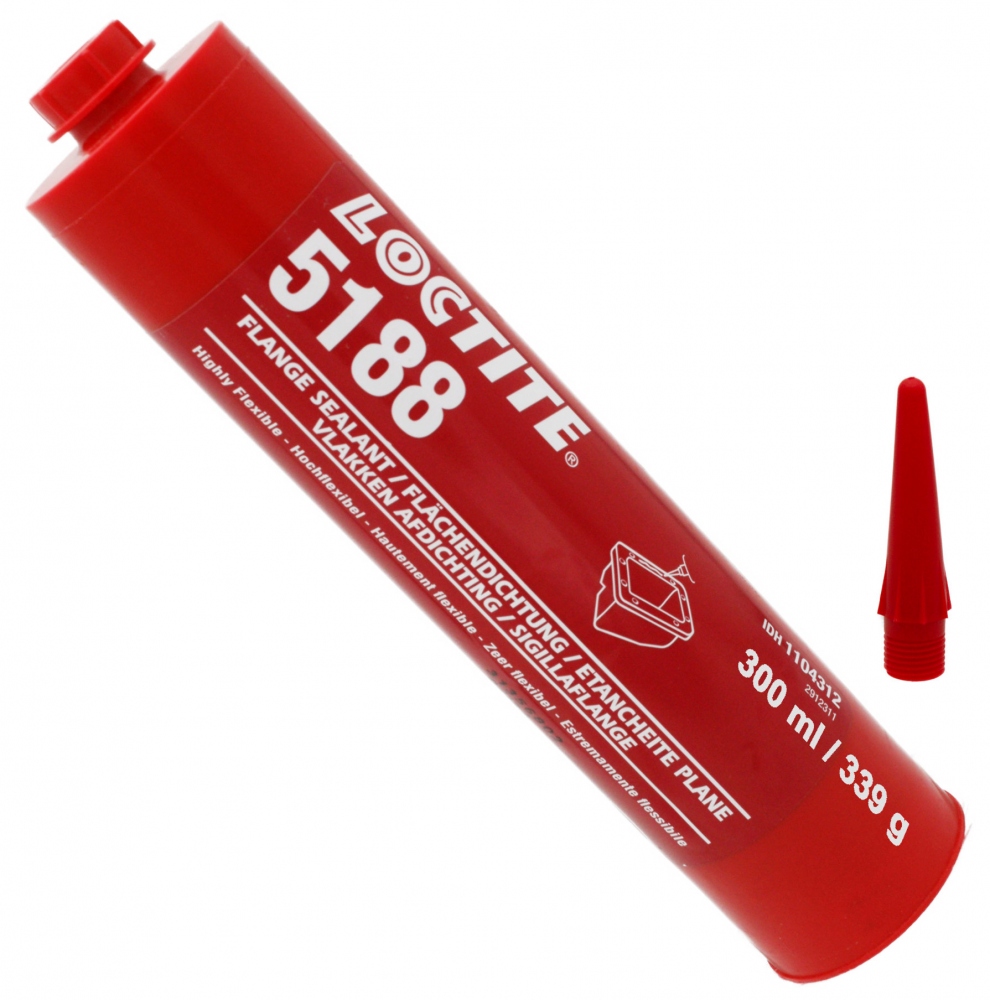

Loctite 5188

Description

Loctite 5188

Loctite 5188 is a single-component, dimethacrylate ester-based anaerobic flange sealant engineered for sealing rigid metal assemblies where close-fitting surfaces are used. It cures in the absence of air (anaerobic conditions) between metal flanges to form a highly flexible, durable polymer seal.

The product provides instant low-pressure sealing and resists oil, transmission fluid, motor oil, and glycol-based coolants. It adheres exceptionally well to aluminum, making it particularly suited for gearboxes, pumps, engines, and mechanical housings.

With a working temperature range up to 150 °C (302 °F) and excellent long-term resistance to heat and chemicals, Loctite 5188 ensures leak-free, maintenance-free sealing performance in industrial and automotive environments.

Uses of the Product

• Sealing gearboxes and engine casings.

• Gasketing for rigid metal flanges (steel and aluminum).

• Transmission housings and machined surface assemblies.

• Preventing leakage in oil-filled and coolant systems.

• Ideal for OEM and maintenance flange sealing applications.

Applications

• Automotive Powertrain & Engine Assembly

• Industrial Equipment & Gearboxes

• Transmission & Compressor Housings

• Machinery Maintenance & Repair Operations

• Manufacturing & Assembly Lines

Technical Specifications

Product Type: Anaerobic, flexible flange sealant
Chemical Type: Dimethacrylate ester
Technology: Acrylic-based anaerobic cure
Color: Red
Viscosity (25 °C): 11,000 – 32,000 mPa·s
Specific Gravity: 1.1
Cure Type: Anaerobic (absence of air, between metals)
Cure Speed @ 22 °C: Fixture in 10–25 minutes, full cure in 24 hours
Strength: Medium
Substrate Compatibility: Steel, Aluminum

Cured Properties:

• Tensile Strength: 4.24 N/mm² (610 psi)

• Elongation: 186%

• Tensile Modulus: 4.17 N/mm²

• Glass Transition Temperature (Tg): 105 °C

• Coefficient of Thermal Expansion: 145–160 × 10⁻⁶ K⁻¹

• Lap Shear Strength (24 hr @ 22 °C):

  • Mild Steel: 9.2 N/mm² (1330 psi)

  • Aluminum: 7.0 N/mm² (1010 psi)

• Sealed Gap Capability: Up to 0.25 mm

• Operating Temperature: –55 °C to +150 °C

Chemical Resistance:
Excellent resistance to:

• Automotive transmission fluid

• Motor oil

• Water/glycol mixtures

• Diesel and industrial oils

Storage:
Store sealed in a cool, dry area.

• Optimal Temperature: 8–21 °C (for <850 ml packs)

• Do not return used material to original container.

Why Buy From Maisam Dubai

• Supplier of genuine Loctite industrial sealants and adhesives.

• Authorized GCC distributor for Loctite anaerobic and gasket solutions.

• Technical expertise in automotive, gearbox, and engine sealing systems.

• Competitive bulk pricing and fast shipping across the Middle East.

• Trusted by industrial and maintenance professionals in UAE and GCC.

FAQs

Q1. What is Loctite 5188 used for?
It’s used to seal rigid metal flanges such as those found in engines, gearboxes, and transmissions.

Q2. What makes Loctite 5188 different from other sealants?
It’s highly flexible, offers excellent chemical resistance, and adheres well even to slightly oily surfaces.

Q3. What is the fixture time?
Between 10–25 minutes, depending on substrate and temperature.

Q4. Is it suitable for aluminum surfaces?
Yes, it’s specially formulated for aluminum flanges and provides superior adhesion.

Q5. What is the temperature range?
It operates between –55 °C and +150 °C.

Q6. Do you supply across GCC?
Yes, Maisam Dubai supplies Loctite sealants across UAE, Saudi Arabia, Oman, Qatar, Bahrain, and Kuwait.
