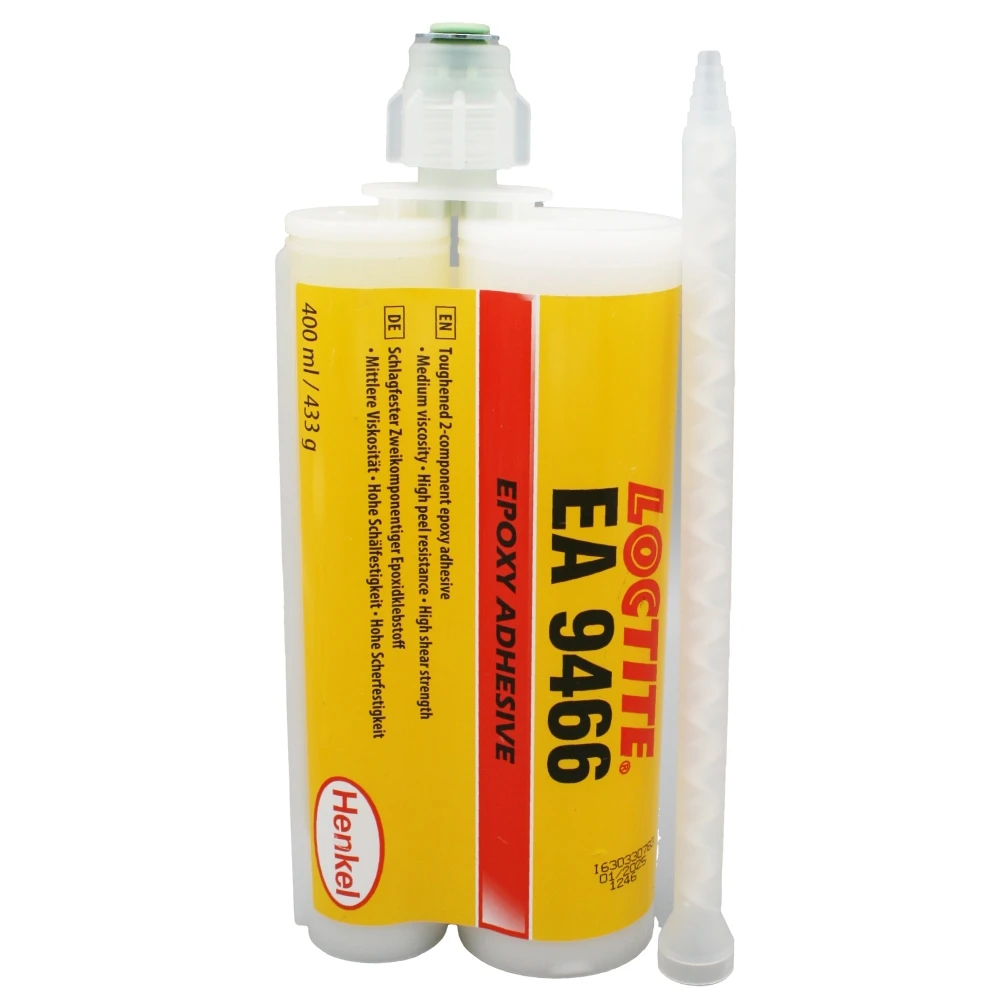

Loctite EA 9466 Two Part Epoxy Adhesive high strength 400ml

Description

Loctite EA 9466 Two Part Epoxy Adhesive high strength 400ml

What Is Loctite EA 9466?

Loctite EA 9466 — also known as Loctite Hysol 9466, and widely referred to as a two-part structural epoxy adhesive, high strength bonding epoxy, or extended work life epoxy adhesive — is a toughened, industrial-grade two-component epoxy adhesive by Loctite, formulated for general purpose industrial applications requiring extended work life for adjusting parts during assembly. Once mixed in a 2:1 volume ratio (100:50 by weight) of resin to hardener, Loctite EA 9466 cures at room temperature to form a tough, off-white bondline delivering high peel resistance and high shear strengths across a wide variety of plastics and metals — making it a trusted choice for structural bonding applications across manufacturing, industrial maintenance, and assembly operations in the UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.

With a generous 60-minute working life and a fixture time of 180 minutes on grit-blasted steel, Loctite EA 9466 gives assemblers ample time to position and adjust parts before the bond sets — a key advantage over fast-setting adhesives in applications requiring precise alignment. The fully cured epoxy is resistant to a wide range of chemicals and solvents, retaining strong performance after prolonged exposure to motor oil, unleaded gasoline, salt fog, and high humidity, and acts as an excellent electrical insulator with a dielectric breakdown strength of 30 kV/mm. Available in a 400ml double cartridge, Loctite EA 9466 is a preferred high strength industrial epoxy adhesive for GCC manufacturing, MRO, and assembly operations. Maisam Trading LLC is the authorised Loctite supplier in Dubai, with stock available for prompt delivery across the entire GCC region.

Description

Loctite EA 9466 is a premium two-part structural epoxy adhesive available from Maisam Trading LLC Dubai in a 400ml double cartridge, designed for general purpose industrial bonding applications where extended work life is essential. The resin is a white opaque paste and the hardener a white translucent liquid; once combined in a 2:1 volume ratio, the mixture forms an off-white opaque paste with a medium viscosity, suited to both hand mixing and automatic dispensing through a mixing nozzle fitted to the double cartridge.

With a 60-minute working life at room temperature, Loctite EA 9466 gives operators sufficient time to apply adhesive, position components, and make fine adjustments before the epoxy begins to set — reaching a fixture strength of 0.1 N/mm² in approximately 180 minutes on grit-blasted steel. Elevated temperatures can be used to accelerate cure speed where faster turnaround is required. Once fully cured (7 days at 22°C), the adhesive achieves a glass transition temperature of 62°C, Shore D hardness of 60, and tensile strength of 32 N/mm² (4,640 psi), with lap shear strengths of 37.0 N/mm² on grit-blasted steel, 26.0 N/mm² on abraded aluminum, and 23.0 N/mm² on stainless steel. The cured bondline demonstrates strong resistance to motor oil, unleaded gasoline, water/glycol mixtures, salt fog, and high humidity environments, retaining 75–145% of initial strength after 500–1,000 hours of exposure depending on the environment — an important consideration for the humid, coastal operating conditions common across the UAE and GCC. For best results, surfaces should be clean and free of grease, oxide films, oils, dust, and mold release agents prior to bonding; mixed quantities should not exceed 4kg to avoid excessive exothermic heat build-up, and assembled parts should be allowed to cure 24 hours before service loading. This product is not recommended for use in pure oxygen or oxygen-rich systems, or as a sealant for chlorine or other strong oxidizing materials. As a trusted Loctite EA 9466 supplier in Dubai and across the GCC, Maisam Trading LLC provides prompt delivery and B2B supply to industrial customers across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.

Features & Benefits

• Creates a tough, high strength structural bond
• Long open time — 60 minute working life for extended assembly and adjustment
• Resistant to a wide range of chemicals and solvents
• High peel and shear strengths across a variety of plastics and metals
• Excellent electrical insulation properties
• Room temperature cure after mixing — no ovens required
• Cure can be accelerated with elevated temperature
• Simple 2:1 volume mix ratio, suitable for cartridge or bulk mixing

Applications

• General purpose industrial bonding requiring extended work life
• Adjusting and positioning parts during assembly
• Structural bonding of metals and plastics
• Applications requiring high peel and shear strength
• Bonding in chemically demanding or humid environments
• Electrical component bonding requiring insulation properties

Industries Served

• Industrial Manufacturing & Assembly
• Automotive & Transport
• Electronics & Electrical Manufacturing
• Marine & Offshore
• Construction & Fabrication
• Oil & Gas

Why Buy from MAISAM TRADING LLC?

• 18+ years of experience supplying Loctite adhesives and sealants across the GCC
• Available in 400ml and 50ml double cartridges
• Dedicated B2B support and technical guidance
• Prompt delivery and export solutions across UAE, Saudi Arabia, Qatar, Oman, Kuwait & Bahrain
• Verified stock of original Loctite (Henkel) products
• Call: +971521672252 | Email: sales@maisamdubai.com

Technical Specifications

FAQs

Q1: What is Loctite EA 9466 used for?
Loctite EA 9466 is a two-part structural epoxy adhesive used for general purpose industrial bonding applications that require an extended work life for adjusting parts during assembly, delivering high peel resistance and high shear strength to a wide variety of plastics and metals.

Q2: How long is the working life of Loctite EA 9466 once mixed?
The mixed adhesive has a working life of approximately 60 minutes at room temperature, giving ample time to apply, position, and adjust bonded parts before the epoxy begins to set.

Q3: What is the mix ratio for Loctite EA 9466?
The mix ratio is 2:1 by volume (100:50 by weight) of resin to hardener. It can be hand-mixed or dispensed automatically through a mixing nozzle attached to the double cartridge.

Q4: How long does Loctite EA 9466 take to cure?
Fixture time — the time to develop a shear strength of 0.1 N/mm² — is approximately 180 minutes on grit-blasted steel at room temperature. Full cure properties are typically reached after 7 days at 22°C, though elevated temperatures can accelerate the cure.

Q5: Is Loctite EA 9466 chemical and solvent resistant?
Yes. The fully cured epoxy is resistant to a wide range of chemicals and solvents, including motor oil, unleaded gasoline, and water/glycol mixtures, and maintains strong performance after prolonged exposure to salt fog and high humidity.

Q6: What substrates can Loctite EA 9466 bond?
It provides excellent bond strength to a wide variety of plastics and metals, including steel, aluminum, stainless steel, galvanized steel, polycarbonate, nylon, wood, GRP, and ABS.

Q7: Is Loctite EA 9466 electrically insulating?
Yes. The cured epoxy acts as an excellent electrical insulator, with a dielectric breakdown strength of 30 kV/mm.

Q8: How much adhesive can be mixed at once?
Do not mix quantities greater than 4kg, as excessive exothermic heat build-up can occur. Mixing smaller quantities minimizes this heat build-up.

Q9: What pack sizes are available?
Loctite EA 9466 is available in a 400ml double cartridge from Maisam Trading LLC, with 50ml double cartridges also available.

Q10: Where can I buy Loctite EA 9466 in the UAE or GCC?
Maisam Trading LLC is a trusted Loctite supplier in Dubai. Contact +971521672252 or email sales@maisamdubai.com. We supply across UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.

Availability & Support

Loctite EA 9466 Two-Part High Strength Epoxy Adhesive 400ml is available across Dubai and all major GCC industrial, manufacturing, and maintenance supply networks through Maisam Trading LLC.

Call / WhatsApp: +971521672252
Email: sales@maisamdubai.com for quotes, TDS, SDS, or bulk order pricing
